DC-DC Step-down Module

74 kr

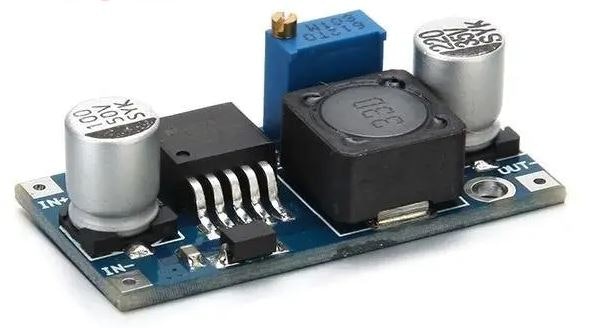

DC-DC Step-down Module

Input voltage: 4.5-35V
 Output voltage: 1.5-35V(Adjustable)
 Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)

 Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
 Switching Frequency: 150KHz
 Rectifier: Non-Synchronous Rectification
 Module Properties: Non-isolated step-down module (buck)
 Short Circuit Protection: Current limiting, since the recovery
 Operating Temperature: Industrial grade (-40  to +85 ) (output power 10W or less)

 Full load Temperature rise: 40
 Load Regulation: ± 0.5%
 Voltage Regulation: ± 2.5%
 Dynamic Response speed: 5% 200uS
 Dimension: 43*20*14mm (L*W*H)
